TIGER-CC

  • Largest Capacity – Move More Material in a Single Row
  • Thicker Corners
  • Thicker Walls, Heavy Front Lip for Digging
  • Cleaner Discharge
  • Heat, Impact & Abrasion Resistant
  • Non-Corrosive, Non-Sparking
  • Extended Bucket Life
  • Increases Elevator Capacity
  • Lowers Elevator Maintenance
  • Decreases Elevator Down Time

THICKER. TOUGHER. LASTS LONGER.

MOUNTING HOLES AND VENTING TO YOUR SPECIFICATIONS

Tiger-CC Industrial

BUCKET SIZE    WEIGHT  CAPACITY
SizeLengthProjDepthBackwall ThicknessPolyNylonUrethaneWater Level X-X, CU. INWater Level X-X, CU. FT.Std Spacing
Dimensionsininininlbslbslbscu incu inin
10X710.8758.1258.3750.53.64.1764.4784217.250.12614
11X711.8758.1256.8750.53.854.4664.7894236.20.13714
12X712.8758.1256.8750.54.044.68645.02576258.30.14914
13X713.8758.1256.8750.54.34.9885.3492299.70.17314
14X714.8758.1256.8750.54.545.26645.64776313.10.18114
15X715.8758.1256.8750.54.785.54485.94632338.70.19614
16X716.8758.1256.8750.54.995.78846.20756352.20.20414
12x812.8759.258.8750.554.95.6846.09563660.21216
14x814.8759.258.8750.555.46.2646.71764300.24916
16x816.8759.258.8750.555.96.8447.33965100.29516
18x818.8759.258.8750.556.67.6565600.32416
20x820.8759.258.8750.557.28.3526550.37916
18x101911.510.3750.711.5613.4096914.740.53020
20x102111.510.3750.712.214.210050.58120
21x102211.510.3750.712.614.61610550.61120
22x102311.510.3750.71315.0811050.63920
23x102411.510.3750.713.515.6611550.66820
24x102511.510.3750.71416.2312060.69820
25x102611.510.3750.714.416.70412560.72720
26x102711.510.3750.714.817.16813060.75620
27x102811.510.3750.715.317.74813560.78520
28x102911.510.3750.715.818.1314000.8120

(Recommended but not restricted to handling these specific products)

Aggregate

IND_Uses_Sample_Aggregate

Potash

IND_Uses_Sample_Potash

Cement

IND_Uses_Sample_Cement

Sand

IND_Uses_Sample_Sand

Coal

IND_Uses_Sample_Coal

Sawdust

IND_Uses_Sample_SawDust

Fertilizer

IND_Uses_Sample_Fertilizer

Gravel

IND_Uses_Sample_Gravel

Perlite

IND_Uses_Sample_Perlite_Vermiculite

Polyethylene

Application:
Grains & Food Products

Temperature Range:
-120°F to +180°F
(210°F intermittent)

FDA Approved Material:
Yes

Comments:
Economical, high density polyethylene. FDA approved material for handling food grade products.

Nylon

Application:
Hot, high impact, abrasive dense products

Temperature Range:
-60°F to +300°F
(350°F intermittent)

FDA Approved Material:
No

Comments:
Best for high heat applications, with tough impact and abrasion needs.

Urethane

Application:
Heavy abrasion, sticky materials

Temperature Range:
-60°F to +180°F
(210°F intermittent)

FDA Approved Material:
Yes

Comments:
Most flexible and abrasion resistant. Resists product sticking and sharp cutting particles.

FDA Nylon

Application:
Hot, high impact, abrasive food grade products

Temperature Range:
-60°F to +300°F

FDA Approved Material:
Yes

Comments:
Best for high heat food grade applications, with tough impact and abrasion needs.

Venting an elevator bucket aids in bucket fill and discharge with light, fluffy materials.

Lightweight, fluffy materials, those that are extremely dense or flow poorly can be difficult to handle in bucket elevators at high speeds. Because these materials tend to trap air when being handled by an elevator bucket, it is necessary to provide air relief to assist in their filling and discharge. Materials in this category might be various flours, meals, feed mash or screenings. As these materials enter the bucket, air is released through a series of vent holes in the bottom of the bucket allowing for a more complete fill. These vent holes also allow air to re-enter the bucket, which facilitates full release of product into the discharge.

Generally hole diameter is equal to bolt holes drilled for attachment. In certain cases, larger diameter holes may be necessary.

When elevating powdery materials such as cement in the Tiger-Tuff, a minimum of two rows of 3/8″ diameter vent holes are recommended to help insure that the material will discharge cleanly.

#1 Vent
Same holes in body as bolt mounting holes.

#2 Vent
One row of holes on 1-1/8″centers.

#3 Vent
Two rows of holes on 1-1/8″centers.

#4 Vent
Same as #3, plus three holes in each end cap.

Custom Vent
Vented as required.

Call for Industrial Bucket venting recommendations

ADDITIONAL SPECIAL DRILLING AND VENTING CHARGES

  • Drilling any diameter hole over 13/32″
  • Bolt Hole centers closer than 1-3/4″
  • Side drilled buckets except standard peanut buckets
  • Special Venting requirements such as extra holes, change in diameter holes, etc.
  • Quoted prices subject to change due to special drilling and venting requirements

CATALOGS

ARTICLES

Wayne Farms LLC
Ag-Land FS Inc.
Central Valley Ag
Farmers Cooperative Association
Two Rivers Cooperative
Farmers Cooperative Elevator Co.
Louis Dreyfus Commodities
CHS Larsen Cooperative
Louis Dreyfus Commodities
Richardson International Ltd
A Lesson In Innovation
Agland
CHS Garrison
81-20 Grain LLC
Central States Enterprises Inc.
Farmers Pride Cooperative
Louis Dreyfus Commodities
Ray Carroll County Grain Growers, Inc.
MKC
The DeLong Co., Inc.
Alabama Farmers Cooperative
Cobb Vantress Inc.
Aurora Cooperative
TEMCO LLC
Cargill Pork
Cargill, Inc.
MKC
Garden City Cooperative
Cooperative Producers, Inc.
Aurora Cooperative
Fullerton Farmers Elevator
Cornerstone Ag LLC
CHS, Inc.
Cargill, Incorporated
Crystal Valley Cooperative
Lincoln Supply LLC
Co-Alliance, LLP
Murphy-Brown LLC
Planter's Grain Cooperative
StateLine Cooperative
Garden City Cooperative, Inc.
DFS Inc.
Country Partners Cooperative
New Possibilities
Eastern Grain Marketing LLC
Auburn Bean & Grain Co.
Wheaton-Dumont Coop Elevator
New Shuttle Loader Facility Prepares for Takeoff
Blanchard Valley Farmers Coop
Seaboard Foods
Crossroads Coop Association
United Grain Systems, LLC
Maxilift Makes The Move
Alliance Grain Co
CPI-Lansing, LLC
GRAINCO FS Inc.
Sunrise Cooperative Inc.
Gavilon
Ursa Farmers Cooperative
Michigan Agricultural Commodities
Farmway Coop Inc.
The Andersons, Inc.
Glacial Plains Cooperative
Peco Foods Inc.
Gavilon
Cooperative Elevator Co.
Cargill, Incorporated
Alabama Farmers Cooperative
Auburn's New Feed Mill Comes To Roost
Co-Alliance LLP
All American Cooperative
Fremar LLC
Butterball, LLC
EGT, LLC
Gavilon Grain LLC
TopFlight Grain Co.
Tubbs Rice and Grain
Blanchard Valley Farmers Cooperative
Five Star Cooperative
Sanderson Farms Inc.
Co-Alliance LLP
Aurora Cooperative Elevator Co.
Madison Farmers Elevator Co.
Gold River Feed Products
Farmers Coop of Eldorado
Farmers Grain & Coal Co.
Cassidy Grain Co.
Town & Country Cooperative
DeBruce Grain Inc. div. of Gavilon Grain Inc.
Glacial Plains Cooperative
Prairie Central Cooperative
Sunrise Cooperative Inc.
South Dakota Wheat Growers Association
All Points Cooperative
Cargill Animal Nutrition
Mid Kansas Cooperative Association
Sunrise Cooperative, Inc.
Ohio Agricultural Research and Development Center
Azteca Milling LP
Kanza Coop Association
Harvest Land Cooperative
Olsen’s Mill Inc.
Alabama Farmers Cooperative
Ruff Bros. Grain Co.
Antwerp Equity
The Scoular Company
Auburn Bean & Grain
Lucky Farmers Inc
United Cooperative
CHS Connell Grain

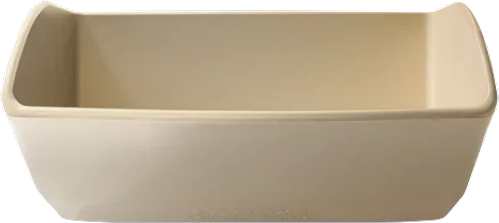

The TIGER-CC Industrial is a maximum duty industrial elevator bucket designed in the traditional CC style. The TIGER-CC is engineered to maximize bucket life and elevator capacity, reduce down time and lower maintenance costs. The TIGER-CC Industrial bucket has the thickest lip, back wall and corners to maximize bucket life and maintain capacity. Standard spacing is projection x 2. The most common applications include aggregate, sand, gravel, coal, gypsum, limestone, clay, cement and many, many more. The TIGER-CC Industrial is the maximum duty industrial bucket for your most demanding industrial applications.

Features & Benefits

  • Largest Capacity – Move More Material in a Single Row
  • Thicker Corners
  • Thicker Walls, Heavy Front Lip for Digging
  • Cleaner Discharge
  • Heat, Impact & Abrasion Resistant
  • Non-Corrosive, Non-Sparking
  • Extended Bucket Life
  • Increases Elevator Capacity
  • Lowers Elevator Maintenance
  • Decreases Elevator Down Time

Other Considerations

Drilling: Elevator buckets are manufactured without a drill pattern. Special drilling or punching can be accommodated upon customer request.

Venting: Available as needed. See venting options in this catalog.

Digger Buckets: Use slightly larger metal digger elevator buckets to help loosen material in the elevator boot section that has set up or hardened, thereby reducing abrasion on the plastic buckets. Call for details on Metal Digger elevator bucket options.

Installation: Use a #1 standard elevator bolt or Sabre-Tooth elevator bolt for installation. Designed to be used with fender or flat and lock washers and hex or locking nuts. If buckets are being installed on chain, use hex head bolts, nuts and washers. A locking device should always be used.

FDA: Both the urethane and polyethylene are designed to FDA specifications for direct contact with food products. Special food grade nylon is also available for high heat applications.

Spacing: PROJECTION x 2 = STANDARD VERTICAL SPACING (depending on material and speeds, smaller and large spacing may be used).
