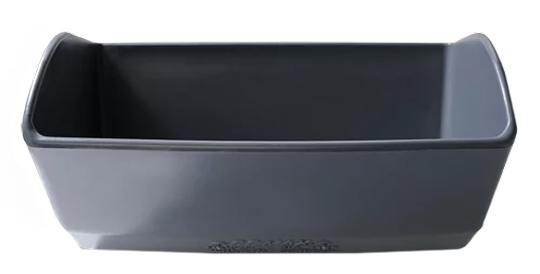

CC-Max | CC-Max Low-Profile Elevator Bucket

Classic CC Shape, Fill and Discharge
Thick, Critical Wear Surfaces
True Upgrade from Older Designs
Thicker Lip and corners – Up to 20%

No wasted material in high ears
More Capacity – Up to 5%
Original Equipment Standard Selection
Patented design

Maxi-Lift’s CC-Max takes the classic CC shape and makes it better. We lowered the high ears allowing for easier filling, and took that material and put it into the front corners and front lip to maximize durability. You get longer life and fantastic performance at a great price. Our design is so good, we patented it!

The CC-Max upgrades your elevator when installed in place of other plastic CC style buckets. Exceptional performance in most agricultural applications. Minimum spacing is nominal projection plus 1”.

CC-MAX Low Profile Option

The CC-MAX Low-Profile bucket has a reduced height modification for closer vertical spacing on the belt. The low profile system allows more buckets per foot of elevator belt. When upgrading to CC-MAX Heavy Duty Low-Pro buckets, horsepower requirements must be evaluated due to increased capacity.

Other Considerations

DRILLING: Elevator buckets are manufactured without a drill pattern. Special drilling or punching can be accommodated upon customer request.

VENTING: Available as needed. See venting options in our catalog.

DIGGER BUCKETS: Use slightly larger metal digger elevator buckets to help loosen material in the elevator boot section that has set up or hardened, thereby reducing abrasion on the plastic buckets. Call for details on Metal Digger elevator bucket options.

SPACING: See elevator bucket spacing details in the size chart (depending on materials and speeds, smaller and larger spacing may be used).

INSTALLATION: Use a #1 standard elevator bolt or Sabre-Tooth elevator bolt for installation. Designed to be used with fender or flat and lock washers and hex or locking nuts. If buckets are being installed on chain, use hex head bolts, nuts and washers.

FDA: Both the urethane and polyethylene are designed to FDA specifications for direct contact with food products.

U.S. Patent 8,240,070

CC-Max Size Chart

BUCKET SIZE								PUNCHING				WEIGHT, LBS.			CAPACITY, CU. IN.
Bucket Size	Length		Projection		Depth		Back Wall Thickness	Centers	# of Holes	Bolt Size	Top Down	HDPE	Nylon	Urethane	Water Level	Water Level +10%	Std Spacing
	in.	mm	in.	mm	in.	mm
5 x 4	5-1/2	140	4-1/2	114	4-1/4	108	0.21	3-3/16	2	1/4	1-7/16	0.53	0.61	0.72	38.30	42.13	5
6 x 4	6-1/2	165	4-1/2	114	4-1/4	108	0.21	4-3/8	2	1/4	1-7/16	0.58	0.70	0.80	45.38	49.92	5
7 x 4	7-1/2	191	4-1/2	114	4-1/4	108	0.21	2-11/16	3	1/4	1-7/16	0.65	0.80	0.88	52.10	57.31	5
6 x 5	6-1/2	165	5-1/2	140	5	127	0.26	4-3/8	2	1/4	1-11/16	0.89	1.02	1.20	70.87	77.96	6
7 x 5	7-1/2	191	5-1/2	140	5	127	0.26	2-11/16	3	1/4	1-11/16	0.99	1.15	1.40	80.75	88.83	6
8 x 5	8-1/2	216	5-1/2	140	5	127	0.26	3-1/16	3	1/4	1-11/16	1.10	1.25	1.50	90.85	99.94	6
9 x 5	9-1/2	241	5-1/2	140	5	127	0.26	3-5/8	3	1/4	1-11/16	1.18	1.35	1.65	100.99	111.09	6
10 x 5	10-1/2	267	5-1/2	140	5	127	0.26	4-1/8	3	1/4	1-11/16	1.31	1.51	1.77	114.22	125.64	6
11 x 5	11-1/2	292	5-1/2	140	5	127	0.26	3	4	1/4	1-11/16	1.45	1.67	1.96	127.44	140.18	6
8 x 6	8-9/16	205	6-5/8	168	6	152	0.27	3-1/16	3	1/4	2	1.40	1.61	1.95	136.00	149.60	7
9 x 6	9-9/16	243	6-5/8	168	6	152	0.27	3-5/8	3	1/4	2	1.52	1.75	2.10	149.19	164.11	7
10 x 6	10-9/16	268	6-5/8	168	6	152	0.27	4-1/8	3	1/4	2	1.64	1.89	2.25	166.89	183.58	7
11 x 6	11-9/16	294	6-5/8	168	6	152	0.27	3	4	1/4	2	1.73	1.95	2.40	180.62	198.68	7
12 x 6	12-9/16	319	6-5/8	168	6	152	0.27	3-3/8	4	1/4	2	1.91	2.20	2.55	200.76	220.83	7
13 x 6	13-9/16	345	6-5/8	168	6	152	0.27	3-5/8	4	1/4	2	2.13	2.45	2.88	215.00	236.50	7
10 x 7	10-9/16	268	7-7/8	200	7	178	0.32	4-1/8	3	5/16	2-3/16	2.35	2.70	3.17	236.00	259.60	8
11 x 7	11-9/16	294	7-7/8	200	7	178	0.32	3	4	5/16	2-3/16	2.44	2.81	3.29	247.74	272.52	8
12 x 7	12-9/16	319	7-7/8	200	7	178	0.32	3-3/8	4	5/16	2-3/16	2.63	3.02	3.55	267.27	293.99	8
13 x 7	13-9/16	344	7-7/8	200	7	178	0.32	3-5/8	4	5/16	2-3/16	2.78	3.20	3.75	284.60	316.93	8
14 x 7	14-9/16	370	7-7/8	200	7	178	0.32	3	5	5/16	2-3/16	2.94	3.40	3.97	303.57	333.93	8
15 x 7	15-9/16	395	7-7/8	200	7	178	0.35	3-1/4	5	5/16	2-3/16	3.10	3.57	4.19	335.00	368.50	8
16 x 7	16-9/16	421	7-7/8	200	7	178	0.35	2-7/8	6	5/16	2-3/16	3.29	3.78	4.44	350.87	385.95	8
12 x 8	12-9/16	319	8-7/8	225	8-1/4	210	0.35	3-3/8	4	5/16	2	3.25	3.74	4.39	373.00	409.00	9
13 x 8	13-9/16	344	8-7/8	225	8-1/4	210	0.35	3-5/8	4	5/16	2	3.51	4.03	4.73	404.00	440.00	9
14 x 8	14-9/16	370	8-7/8	225	8-1/4	210	0.35	3	5	5/16	2	3.76	4.32	5.08	435.07	478.58	9
16 x 8	16-9/16	421	8-7/8	225	8-1/4	210	0.38	2-7/8	6	5/16	2	4.30	4.85	5.81	515.62	567.18	9
18 x 8	18-9/16	471	8-7/8	225	8-1/4	210	0.39	3-1/8	6	5/16	2	4.79	5.30	6.47	580.61	638.67	9
20 x 8	20-9/16	522	8-7/8	225	8-1/4	210	0.42	3-1/2	6	5/16	2	5.85	6.73	7.90	655.00	720.00	9

CC-Max (Low Profile)

BUCKET SIZE								PUNCHING				WEIGHT, LBS.			CAPACITY, CU. IN.
Bucket Size	Length		Projection		Depth		Back Wall Thickness	Centers	# of Holes	Bolt Size	Top Down	HDPE	Nylon	Urethane	Water Level	Water Level +5%	Std Spacing
	in.	mm	in.	mm	in.	mm
5 x 4	5-1/2	140	4-1/2	114	2-3/4	70	0.21	3-3/16	2	1/4	1	0.43	0.49	0.58	38.30	40.22	3
6 x 4	6-1/2	165	4-1/2	114	2-3/4	70	0.21	4-3/8	2	1/4	1	0.50	0.58	0.68	45.38	47.65	3
7 x 4	7-1/2	191	4-1/2	114	2-3/4	70	0.21	2-11/16	3	1/4	1	0.56	0.64	0.76	52.10	54.70	3
6 x 5	6-1/2	165	5-1/2	140	3-3/4	95	0.26	4-3/8	2	1/4	1	0.74	0.85	1	70.87	74.41	4
7 x 5	7-1/2	191	5-1/2	140	3-3/4	95	0.26	2-11/16	3	1/4	1	0.85	0.98	1.15	80.75	84.79	4
8 x 5	8-1/2	216	5-1/2	140	3-3/4	95	0.26	3-1/16	3	1/4	1	0.95	1.09	1.28	90.85	95.39	4
9 x 5	9-1/2	241	5-1/2	140	3-3/4	95	0.26	3-5/8	3	1/4	1	1.01	1.16	1.36	100.99	106.04	4
10 x 5	10-1/2	267	5-1/2	140	3-3/4	95	0.26	4-1/8	3	1/4	1	1.13	1.3	1.53	114.22	119.93	4
11 x 5	11-1/2	292	5-1/2	140	3-3/4	95	0.26	3	4	1/4	1	1.24	1.43	1.67	127.44	133.81	4
8 x 6	8-9/16	205	6-5/8	168	4-3/4	121	0.27	3-1/16	3	1/4	1	1.16	1.33	1.57	136.00	142.00	5
9 x 6	9-9/16	243	6-5/8	168	4-3/4	121	0.27	3-5/8	3	1/4	1	1.28	1.47	1.73	149.19	156.65	5
10 x 6	10-9/16	268	6-5/8	168	4-3/4	121	0.27	4-1/8	3	1/4	1	1.38	1.59	1.86	166.89	175.23	5
11 x 6	11-9/16	294	6-5/8	168	4-3/4	121	0.27	3	4	1/4	1	1.50	1.73	2.03	180.62	189.65	5
12 x 6	12-9/16	319	6-5/8	168	4-3/4	121	0.27	3-3/8	4	1/4	1	1.65	1.9	2.23	200.76	210.79	5
13 x 6	13-9/16	345	6-5/8	168	4-3/4	121	0.27	3-5/8	4	1/4	1	1.77	2.04	2.39	215.00	225.75	5
10 x 7	10-9/16	268	7-7/8	200	5-3/4	146	0.32	4-1/8	3	5/16	1	2.05	2.36	2.77	236.00	247.80	6
11 x 7	11-9/16	294	7-7/8	200	5-3/4	146	0.32	3	4	5/16	1	2.14	2.46	2.89	247.74	260.13	6
12 x 7	12-9/16	319	7-7/8	200	5-3/4	146	0.32	3-3/8	4	5/16	1	2.30	2.65	3.11	267.27	280.63	6
13 x 7	13-9/16	344	7-7/8	200	5-3/4	146	0.32	3-5/8	4	5/16	1	2.42	2.78	3.27	284.60	302.53	6
14 x 7	14-9/16	370	7-7/8	200	5-3/4	146	0.32	3	5	5/16	1	2.54	2.92	3.43	303.57	318.75	6
15 x 7	15-9/16	395	7-7/8	200	5-3/4	146	0.35	3-1/4	5	5/16	1	2.74	3.15	3.7	335.00	351.75	6
16 x 7	16-9/16	421	7-7/8	200	5-3/4	146	0.35	2-7/8	6	5/16	1	2.93	3.37	3.96	350.87	368.41	6
12 x 8	12-9/16	319	8-7/8	225	6-3/4	171	0.35	3-3/8	4	5/16	1	2.96	3.4	4	373.00	391.65	7
13 x 8	13-9/16	344	8-7/8	225	6-3/4	171	0.35	3-5/8	4	5/16	1	3.51	3.8	4.46	404.00	424.20	7
14 x 8	14-9/16	370	8-7/8	225	6-3/4	171	0.35	3	5	5/16	1	3.30	4.36	5.12	435.07	456.83	7
16 x 8	16-9/16	421	8-7/8	225	6-3/4	171	0.38	2-7/8	6	5/16	1	3.79	4.82	5.66	515.62	541.40	7
18 x 8	18-9/16	471	8-7/8	225	6-3/4	171	0.39	3-1/8	6	5/16	1	4.19	6.03	7.07	580.61	609.64	7
20 x 8	20-9/16	522	8-7/8	225	6-3/4	171	0.42	3-1/2	6	5/16	1	5.24	6.73	7.90	655.00	688.00	7

CC-Max Steel Digger

Digger elevator buckets aid in breaking up material in the boot section of a bucket elevator. Diggers extend 1/4″ further than plastic elevator buckets. Weights and dimensions will vary. Tolerance is a 1/4″ on all bucket dimensions except bolt hole diameter which is 1/16″. Capacity is based off of plastic elevator buckets of similar style. Buckets available in carbon or stainless steel. Additional AR wear lips, back plates and venting available upon request. Buckets available in other gauges including 14GA, 12GA, 10GA, 7GA, 1/4″ thick.

Bucket Size, Inches				Punching, Inches			Weight, Lbs.	Capacity, Cu. Inches
Size	Length (L)	Proj. (P)	Depth (D)	Centers (E)	# Of Holes	Bolt Size	10 GA Carbon Steel	Water Level (X-X)	Water Level +5°
5X4	6	4-3/4	4-1/4	3-3/16	2	1/4	4.8	36.61	40.27
6X4	7	4-3/4	4-1/4	4-3/8	2	1/4	5.2	45.15	50.65
7X4	8	4-3/4	4-1/4	2-5/8	3	1/4	5.9	54.92	61.02
6X5	7	5-3/4	5	4-3/8	2	1/4	7.4	66.51	73.22
7X5	8	5-3/4	5	2-5/8	3	1/4	7.8	81.77	91.53
8X5	9	5-3/4	5	3-1/16	3	1/4	10.6	91.53	101.29
9X5	10	5-3/4	5	3-1/2	3	1/4	10.8	103.73	117.16
10X5	11	5-3/4	5	4	3	1/4	9.2	122.04	139.74
11X5	11-13/16	5-3/4	5	3-1/8	4	1/4	9.7	141.26	153.77
8X6	8-13/16	7-1/8	6	3-1/16	3	1/4	10.2	134.24	152.55
9X6	9-13/16	7-1/8	6	3-1/2	3	1/4	10.6	146.45	169.03
10X6	10-13/16	7-1/8	6	4	3	1/4	11.6	194.04	219.67
11X6	11-13/16	7-1/8	6	3	4	1/4	12.4	181.84	200.15
12X6	12-13/16	7-1/8	6	3-3/8	4	1/4	12.9	198.01	231.88
13X6	13-13/16	7-1/8	6	3-5/8	4	1/4	13.7	223.33	255.06
10X7	10-13/16	8-1/8	7	4	3	5/16	14.5	240.91	264.59
11X7	11-13/16	8-1/8	7	3	4	5/16	15	269.32	292.41
12X7	12-13/16	8-1/8	7	3-3/8	4	5/16	15.7	292.41	319.63
13X7	13-13/16	8-1/8	7	3-5/8	4	5/16	16.4	344.2	356.4
14X7	14-13/16	8-1/8	7	3	4	5/16	17	356.4	386.9
15X7	15-13/16	8-1/8	7	3-1/4	5	5/16	17.5	379.5	408.2
16X7	16-13/16	8-1/8	7	3-1/2	5	5/16	18.3	406.4	432
12X8	12-13/16	9-1/8	8-1/4	3-3/8	4	5/16	18.9	390.67	423.22
13X8	13-13/16	9-1/8	8-1/4	3-5/8	4	5/16	19.9	406.39	452.77
14X8	14-13/16	9-1/8	8-1/4	3	5	5/16	21.3	465	502.8
16X8	16-13/16	9-1/8	8-1/4	3-1/2	5	5/16	23.1	543.1	571.1
18X8	18-13/16	9-1/8	8-1/4	3-1/8	6	5/16	25.2	610.2	648
20X8	20-13/16	9-1/8	8-1/4	3-1/2	6	5/16	27	646.81	714.73

Recommended Uses

(Recommended but not restricted to handling these specific products)

Barley

Brown Sugar

Coffee

Corn

Feed

Flour

Grain

Grass Seed

Meat Scap

Nuts

Oats

Pellets

Rice

Salt

Soy Beans

Sugar

Sunflower Seeds

Wheat

Poly

Application:

Grains & Food Products Temperature

Range:

-60F to +180F(210F intermittent)

FDA Approved Material:

Yes

Comments:

Economical, high density polyethylene. FDA approved material for handling food grade products.

Nylon

Application:

Hot, high impact, abrasive dense products

Range:

-60°F to +300°F (350°F intermittent)

FDA Approved Material:

Comments:

Best for high heat applications, with tough impact and abrasion needs.

Urethane

Application:

Heavy, abrasion, sticky materials

Range:

-60F to +180F(210F intermittent)

FDA Approved Material:

Yes

Comments:

Most flexible and abrasion resistant. Resists product sticking and sharp cutting particles.

FDA Nylon

Application:

Hot, high impact, abrasive food grade products

Range:

-60F to +300F

FDA Approved Material:

Yes

Comments:

Best for high heat food grade applications, with tough impact and abrasion needs.

Venting an elevator bucket aids in bucket fill and discharge with light, fluffy materials.

Lightweight, fluffy materials, those that are extremely dense or flow poorly can be difficult to handle in bucket elevators at high speeds. Because these materials tend to trap air when being handled by an elevator bucket, venting provides air relief to assist in their filling and discharge. Commodities for venting include flours, meals, feed mash, DDG’s or screenings. As these materials enter the bucket, air is released through a series of vent holes in the bottom of the bucket allowing for a more complete fill. These vent holes also allow air to re-enter the bucket, which facilitates full release of product into the discharge.

Standard hole diameter is equal to the size of the bolt mounting holes in vent pattern #1, all other vent patterns will have 11/32” diameter holes unless otherwise requested by the customer.

ADDITIONAL SPECIAL DRILLING AND VENTING CHARGES

Drilling any diameter hole over 13/32″
Bolt Hole centers closer than 1-3/4″
Side drilled buckets except standard peanut buckets
Special Venting requirements such as extra holes, change in hole diameter, etc.
Quoted prices subject to change due to special drilling and venting requirements

#1 Vent

Same holes in body as bolt mounting holes.

#2 Vent

One row of holes on 1-1/8″centers

#3 Vent

Two rows of holes on 1-1/8″centers.

#4 Vent

Same as #3, plus three holes in each end cap.

Custom Vent

Vented as required.

Please call for guidance on bucket venting.
