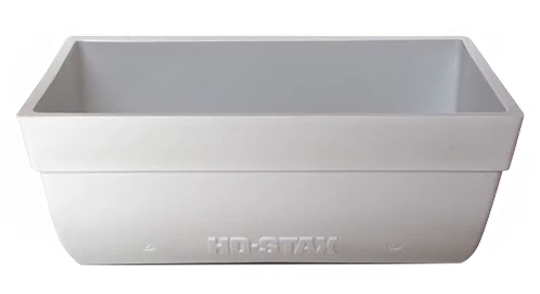

HD-Stax | Stackable Agricultural Elevator Bucket

Patented, Heavy Duty Design
Nests for Economical Packing and Shipping
Thick Wear Lip and Corners
Stocked Around the Globe
Calumet Shape for Clean Filling and Discharge

The HD-STAX is a patented stackable elevator bucket designed for long life, more capacity, and economical shipping. Designed to stack (nest) together, the HD-STAX gives you almost 3 times more buckets per skid and container. The HD-STAX buckets slide together to provide up to 60% space reduction for storage and shipping resulting in lower costs.

The HD-STAX also features a thicker, heavier wear lip molded across the front and sides of the bucket, for a tougher, stronger and longer lasting design. The wear lip is almost 2” tall, and is thicker in the corners to give you sustainable life when used in tough agricultural applications.

HD-Stax Low Profile Option

A reduced height for closer vertical spacing allows more buckets per foot of elevator belt. When upgrading to HD-Stax Low Profile buckets, horsepower requirements must be evaluated due to increased capacity.

Other Considerations

DRILLING: Elevator buckets are manufactured without a drill pattern. Special drilling or punching can be accommodated upon customer request.

VENTING: Available as needed. See venting options in our catalog.

DIGGER BUCKETS: Use slightly larger metal digger elevator buckets to help loosen material in the elevator boot section that has set up or hardened, thereby reducing abrasion on the plastic buckets. Call for details on Metal Digger elevator bucket options.

SPACING: See elevator bucket spacing details in the size chart (depending on materials and speeds, smaller and larger spacing may be used).

INSTALLATION: Use a #1 standard elevator bolt or Sabre-Tooth elevator bolt for installation. Designed to be used with fender or flat and lock washers and hex or locking nuts. If buckets are being installed on chain, use hex head bolts, nuts and washers.

FDA: Both the urethane and polyethylene are designed to FDA specifications for direct contact with food products.

U.S. Patent D748157, Patent MX 48375, Ⓓ Maxi-Lift, Inc., Community Registered Design No. 002683862-0001, China Patent Marking: ZL 201530103355.9

HD-Stax Size Chart

BUCKET SIZE								PUNCHING				WEIGHT, LBS.	CAPACITY, CU. IN.
Bucket Size	Length		Projection		Depth		Back Wall Thickness	Centers	# of Holes	Bolt Size	Top Down	HDPE	Water Level	Usable 5 Deg.	Std Spacing
	in.	mm	in.	mm	in.	mm
4 x 3	4-1/4	108	3-5/8	92	2-7/8	73	0.25	2-1/4	2	1/4	7/8	0.22	16	18	4
5 x 4	5-5/8	143	4-5/8	118	4	102	0.32	3-3/16	2	1/4	1-1/8	0.47	38	42	5
6 x 4	6-5/8	168	4-5/8	118	4	102	0.32	4-3/8	2	1/4	1-1/8	0.55	46	51	5
7 x 4	7-5/8	194	4-5/8	118	4	102	0.32	2-5/8	3	1/4	1-1/8	0.61	52	57	5
6 x 5	6-3/4	172	5-3/4	146	5	127	0.35	4-3/8	2	1/4	1-5/8	0.81	72	79	6
7 x 5	7-3/4	197	5-3/4	146	5	127	0.35	2-5/8	3	1/4	1-5/8	0.92	85	94	6
8 x 5	8-3/4	222	5-3/4	146	5	127	0.35	3-1/16	3	1/4	1-5/8	1.00	103	113	6
9 x 5	9-3/4	248	5-3/4	146	5	127	0.35	3-1/2	3	1/4	1-5/8	1.10	110	121	6
8 x 6	8-11/16	221	6-7/8	175	6-1/8	156	0.36	3-1/16	3	1/4	1-5/8	1.39	140	154	7
9 x 6	9-11/16	246	6-7/8	175	6-1/8	156	0.36	3-1/2	3	1/4	1-5/8	1.51	158	174	7
10 x 6	10-11/16	271	6-7/8	175	6-1/8	156	0.36	4	3	1/4	1-5/8	1.63	176	194	7
11 x 6	11-11/16	297	6-7/8	175	6-1/8	156	0.36	3	4	1/4	1-5/8	1.75	194	213	7
12 x 6	12-11/16	322	6-7/8	175	6-1/8	156	0.36	3-3/8	4	1/4	1-5/8	1.88	212	233	7
13 x 6	13-11/16	348	6-7/8	175	6-1/8	156	0.36	3-5/8	4	1/4	1-5/8	1.99	230	253	7
10 x 7	10-15/16	278	7-15/16	202	7-1/8	181	0.38	4	3	5/16	1-7/8	2.30	246	271	8
11 x 7	11-15/16	303	7-15/16	202	7-1/8	181	0.38	3	4	5/16	1-7/8	2.51	272	299	8
12 x 7	12-15/16	329	7-15/16	202	7-1/8	181	0.38	3-3/8	4	5/16	1-7/8	2.68	296	326	8
13 x 7	13-15/16	354	7-15/16	202	7-1/8	181	0.38	3-5/8	4	5/16	1-7/8	2.83	320	352	8
14 x 7	14-15/16	379	7-15/16	202	7-1/8	181	0.38	3	5	5/16	1-7/8	2.98	345	380	8
16 x 7	16-15/16	430	7-15/16	202	7-1/8	181	0.38	3-1/2	5	5/16	1-7/8	3.34	400	440	8
12 x 8	13-1/8	333	8-15/16	227	8-1/8	206	0.40	3-3/8	4	5/16	2	3.69	395	435	9
14 x 8	15-1/8	384	8-15/16	227	8-1/8	206	0.40	3	5	5/16	2	4.14	470	517	9
16 x 8	16-1/8	435	8-15/16	227	8-1/8	206	0.40	3-1/2	5	5/16	2	4.58	550	605	9
18 x 8	19-1/8	486	8-15/16	227	8-1/8	206	0.40	3-1/8	6	5/16	2	5.04	615	677	9

HD-Stax (Low Profile)

BUCKET SIZE								PUNCHING				WEIGHT, LBS.	CAPACITY, CU. IN.
Bucket Size	Length		Projection		Depth		Back Wall Thickness	Centers	# of Holes	Bolt Size	Top Down	HDPE	Water Level	Usable 5 Deg.	Std Spacing
	in.	mm	in.	mm	in.	mm
5 x 4	5-5/8	143	4-5/8	118	3-1/2	89	0.32	3-3/16	2	1/4	1	0.41	38	40	3-1/2
6 x 4	6-5/8	168	4-5/8	118	3-1/2	89	0.32	4-3/8	2	1/4	1	0.48	46	48	3-1/2
7 x 4	7-5/8	194	4-5/8	118	3-1/2	89	0.32	2-5/8	3	1/4	1	0.54	52	55	3-1/2
6 x 5	6-3/4	172	5-3/4	146	4	102	0.35	4-3/8	2	1/4	1	0.69	72	76	4
7 x 5	7-3/4	197	5-3/4	146	4	102	0.35	2-5/8	3	1/4	1	0.75	85	89	4
8 x 5	8-3/4	222	5-3/4	146	4	102	0.35	3-1/16	3	1/4	1	0.82	103	108	4
9 x 5	9-3/4	248	5-3/4	146	4	102	0.35	3-1/2	3	1/4	1	0.90	110	116	4
8 x 6	8-11/16	221	6-7/8	175	4-7/8	124	0.36	3-1/16	3	1/4	1	1.26	140	147	5
9 x 6	9-11/16	246	6-7/8	175	4-7/8	124	0.36	3-1/2	3	1/4	1	1.37	158	166	5
10 x 6	10-11/16	271	6-7/8	175	4-7/8	124	0.36	4	3	1/4	1	1.45	176	185	5
11 x 6	11-11/16	297	6-7/8	175	4-7/8	124	0.36	3	4	1/4	1	1.61	194	204	5
12 x 6	12-11/16	322	6-7/8	175	4-7/8	124	0.36	3-3/8	4	1/4	1	1.72	212	223	5
13 x 6	13-11/16	348	6-7/8	175	4-7/8	124	0.36	3-5/8	4	1/4	1	1.82	230	242	5
10 x 7	10-15/16	278	7-15/16	202	6	152	0.38	4	3	5/16	1	2.17	246	258	6
11 x 7	11-15/16	303	7-15/16	202	6	152	0.38	3	4	5/16	1	2.29	272	286	6
12 x 7	12-15/16	329	7-15/16	202	6	152	0.38	3-3/8	4	5/16	1	2.50	296	311	6
13 x 7	13-15/16	354	7-15/16	202	6	152	0.38	3-5/8	4	5/16	1	2.63	320	336	6
14 x 7	14-15/16	379	7-15/16	202	6	152	0.38	3	5	5/16	1	2.76	345	362	6
16 x 7	16-15/16	430	7-15/16	202	6	152	0.38	3-1/2	5	5/16	1	3.06	400	420	6
12 x 8	13-1/8	333	8-15/16	227	6-3/4	171	0.40	3-3/8	4	5/16	1	3.41	395	415	7
14 x 8	15-1/8	384	8-15/16	227	6-3/4	171	0.40	3	5	5/16	1	3.81	470	494	7
16 x 8	16-1/8	435	8-15/16	227	6-3/4	171	0.40	3-1/2	5	5/16	1	4.23	550	578	7
18 x 8	19-1/8	486	8-15/16	227	6-3/4	171	0.40	3-1/8	6	5/16	1	4.64	615	646	7

Recommended Uses

(Recommended but not restricted to handling these specific products)

Barley

Brown Sugar

Coffee

Corn

Feed

Flour

Grain

Grass Seed

Meat Scap

Nuts

Oats

Pellets

Rice

Salt

Soy Beans

Sugar

Sunflower Seeds

Wheat

Poly

Application:

Grains & Food Products Temperature

Range:

-60F to +180F (210F intermittent)

FDA Approved Material:

Yes

Comments:

Economical, high density polyethylene. FDA approved material for handling food grade products.

Venting an elevator bucket aids in bucket fill and discharge with light, fluffy materials. Lightweight, fluffy materials, those that are extremely dense or flow poorly can be difficult to handle in bucket elevators at high speeds. Because these materials tend to trap air when being handled by an elevator bucket, venting provides air relief to assist in their filling and discharge. Commodities for venting include flours, meals, feed mash, DDG’s or screenings. As these materials enter the bucket, air is released through a series of vent holes in the bottom of the bucket allowing for a more complete fill. These vent holes also allow air to re-enter the bucket, which facilitates full release of product into the discharge. Standard hole diameter is equal to the size of the bolt mounting holes in vent pattern #1, all other vent patterns will have 11/32” diameter holes unless otherwise requested by the customer.

ADDITIONAL SPECIAL DRILLING AND VENTING CHARGES

Drilling any diameter hole over 13/32″
Bolt Hole centers closer than 1-3/4″
Side drilled buckets except standard peanut buckets
Special Venting requirements such as extra holes, change in hole diameter, etc.
Quoted prices subject to change due to special drilling and venting requirements

#1 Vent

Same holes in body as bolt mounting holes.

#2 Vent

One row of holes on 1-1/8″centers

#3 Vent

Two rows of holes on 1-1/8″centers.

#4 Vent

Same as #3, plus three holes in each end cap.

Custom Vent

Vented as required.

Please call for guidance on bucket venting.
