Tiger-CC | Plastic Elevator Bucket

Traditional CC Shape, Robust Tiger-Tuff Pedigree
Thick Walls, Corners and Front Lip for Long Life
Excellent Impact and Abrasion Resistance
Up to 30,000 BPH in a Single Row

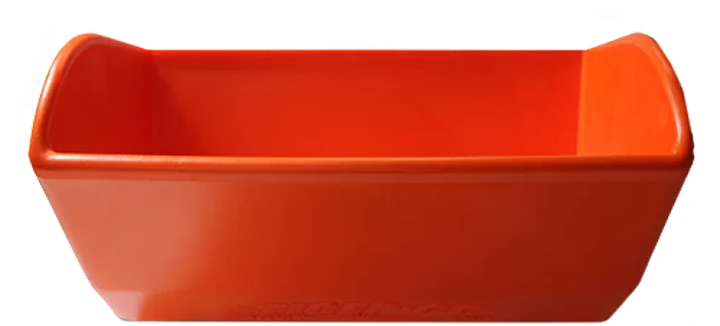

tiger cc plastic elevator bucket by maxilift, with grain The Tiger-CC-Maximum Duty Elevator Bucket combines the performance of the traditional CC elevator bucket with resilience of the Tiger-Tuff resulting in increased bucket life with less breakage and more capacity. Tiger-CC is perfect for ship and barge loaders, unit train facilities and high throughput crushing operations

Minimum spacing is nominal projection plus 1”. The recommended belt width for a single row of buckets is actual bucket width plus 2″.

Tiger-CC Low Profile Option

A reduced height for closer vertical spacing allows more buckets per foot of elevator belt. When upgrading to Tiger-CC Low Profile buckets, horsepower requirements must be evaluated due to increased capacity.

Other Considerations

DRILLING: Elevator buckets are manufactured without a drill pattern. Special drilling or punching can be accommodated upon customer request.

VENTING: Available as needed. See venting options in our catalog.

DIGGER BUCKETS: Use slightly larger metal digger elevator buckets to help loosen material in the elevator boot section that has set up or hardened, thereby reducing abrasion on the plastic buckets. Call for details on Metal Digger elevator bucket options.

SPACING: See elevator bucket spacing details in the size chart (depending on materials and speeds, smaller and larger spacing may be used).

INSTALLATION: Use a #1 standard elevator bolt or Sabre-Tooth elevator bolt for installation. Designed to be used with fender or flat and lock washers and hex or locking nuts. If buckets are being installed on chain, use hex head bolts, nuts and washers.

FDA: Both the urethane and polyethylene are designed to FDA specifications for direct contact with food products.

Tiger-CC Size Chart

BUCKET SIZE								PUNCHING				WEIGHT, LBS.			CAPACITY, CU. IN.
Bucket Size	Length		Projection		Depth		Back Wall Thickness	Centers	# of Holes	Bolt Size	Top Down	HDPE	Nylon	Urethane	Water Level	Water Level +10%	Std Spacing
	in.	mm	in.	mm	in.	mm
10 x 7	10-7/8	276	8-1/8	206	6-7/8	174	0.50	4-1/8	3	5/16	2-3/16	3.60	3.60	3.60	217	239	8
11 x 7	11-7/8	301	8-1/8	206	6-7/8	174	0.50	3	4	5/16	2-3/16	3.85	3.85	3.85	236	260	8
12 x 7	12-7/8	327	8-1/8	206	6-7/8	174	0.50	3-3/8	4	5/16	2-3/16	4.04	4.04	4.04	258	284	8
13 x 7	13-7/8	352	8-1/8	206	6-7/8	174	0.50	3-5/8	4	5/16	2-3/16	4.30	4.30	4.30	300	330	8
14 x 7	14-7/8	377	8-1/8	206	6-7/8	174	0.50	3	5	5/16	2-3/16	4.54	4.54	4.54	313	344	8
15 x 7	15-7/8	403	8-1/8	206	6-7/8	174	0.50	3-1/4	5	5/16	2-3/16	4.78	4.78	4.78	339	373	8
16 x 7	16-7/8	428	8-1/8	206	6-7/8	174	0.50	2-7/8	6	5/16	2-3/16	4.99	4.99	4.99	352	387	8
12 x 8	12-7/8	327	9-1/4	235	8-7/8	225	0.55	3-3/8	4	5/16	2	4.90	–	–	366	403	9
14 x 8	14-7/8	377	9-1/4	235	8-7/8	225	0.55	3	5	5/16	2	5.40	6.17	–	430	473	9
16 x 8	16-7/8	428	9-1/4	235	8-7/8	225	0.55	2-7/8	6	5/16	2	5.90	6.78	6.78	510	561	9
18 x 8	18-7/8	479	9-1/4	235	8-7/8	225	0.55	3-1/8	6	5/16	2	6.60	7.70	–	560	616	9
20 x 8	20-7/8	530	9-1/4	235	8-7/8	225	0.55	3-1/2	6	5/16	2	7.20	8.15	–	655	720	9
18 x 10	19	481	11-1/2	292	10-3/8	264	0.70	3-1/8	6	3/8	2-1/4	11.56	11.56	–	915	1005	11
20 x 10	21	533	11-1/2	292	10-3/8	264	0.70	3-1/2	6	3/8	2-1/4	12.20	14.20	–	1005	1106	11
22 x 10	23	584	11-1/2	292	10-3/8	264	0.70	4	6	3/8	2-1/4	13.00	14.30	–	1105	1216	11
23 x 10	24	609	11-1/2	292	10-3/8	264	0.70	3-3/8	7	3/8	2-1/4	13.50	–	–	1155	1274	11
24 x 10	25	635	11-1/2	292	10-3/8	264	0.70	3-1/2	7	3/8	2-1/4	14.00	16.23	–	1206	1327	11
25 x 10	26	660	11-1/2	292	10-3/8	264	0.70	3-5/8	7	3/8	2-1/4	14.40	–	–	1256	1381	11
26 x 10	27	685	11-1/2	292	10-3/8	264	0.70	3-7/8	7	3/8	2-1/4	14.80	17	–	1306	1437	11
28 x 10	29	737	11-1/2	292	10-3/8	264	0.70	3-5/8	8	3/8	2-1/4	15.80	18.13	–	1400	1540	11
18 x 12	19	481	13-1/2	343	12-1/8	308	0.75	3-1/8	6	3/8	2-1/8	16.20	18.80	–	1222	1344	13
20 x 12	21	533	13-1/2	343	12-1/8	308	0.75	3-1/2	6	3/8	2-1/8	17.60	20.40	–	1365	1502	13
22 x 12	23	584	13-1/2	343	12-1/8	308	0.75	4	6	3/8	2-1/8	18.80	21.80	–	1508	1659	13
24 x 12	25	635	13-1/2	343	12-1/8	308	0.75	3-1/2	7	3/8	2-1/8	19.70	22.90	–	1652	1817	13

Tiger-CC (Low Profile)

8								PUNCHING				WEIGHT, LBS.			CAPACITY, CU. IN.
Bucket Size	Length		Projection		Depth		Back Wall Thickness	Centers	# of Holes	Bolt Size	Top Down	HDPE	Nylon	Urethane	Water Level	Water Level +5%	Std Spacing
	in.	mm	in.	mm	in.	mm
10 x 7	10-7/8	276	8-1/8	206	5-3/4	146	0.50	4-1/8	3	5/16	1	3.08	–	–	217	228	6
11 x 7	11-7/8	301	8-1/8	206	5-3/4	146	0.50	3	4	5/16	1	3.35	–	–	236	248	6
12 x 7	12-7/8	327	8-1/8	206	5-3/4	146	0.50	3-3/8	4	5/16	1	3.56	–	–	258	271	6
13 x 7	13-7/8	352	8-1/8	206	5-3/4	146	0.50	3-5/8	4	5/16	1	3.75	–	–	300	315	6
14 x 7	14-7/8	377	8-1/8	206	5-3/4	146	0.50	3	5	5/16	1	4.02	–	–	313	329	6
15 x 7	15-7/8	403	8-1/8	206	5-3/4	146	0.50	3-1/4	5	5/16	1	4.22	–	–	339	356	6
16 x 7	16-7/8	428	8-1/8	206	5-3/4	146	0.50	2-7/8	6	5/16	1	4.43	–	–	352	370	6
12 x 8	12-7/8	327	9-1/4	235	6-3/4	171	0.55	3-3/8	4	5/16	1	4.20	–	–	366	384	7
14 x 8	14-7/8	377	9-1/4	235	6-3/4	171	0.55	3	5	5/16	1	4.80	–	–	430	452	7
16 x 8	16-7/8	428	9-1/4	235	6-3/4	171	0.55	2-7/8	6	5/16	1	5.20	–	–	510	536	7
18 x 8	18-7/8	479	9-1/4	235	6-3/4	171	0.55	3-1/8	6	5/16	1	5.70	–	–	560	588	7
20 x 8	20-7/8	530	9-1/4	235	6-3/4	171	0.55	3-1/2	6	5/16	1	6.30	7.13	8.38	655	688	7
18 x 10	19	481	11-1/2	292	8-3/4	222	0.70	3-1/8	6	3/8	1	–	–	–	915	960	9
20 x 10	21	533	11-1/2	292	8-3/4	222	0.70	3-1/2	6	3/8	1	11.10	–	–	1005	1055	9
22 x 10	23	584	11-1/2	292	8-3/4	222	0.70	4	6	3/8	1	12.00	–	–	1105	1160	9
23 x 10	24	609	11-1/2	292	8-3/4	222	0.70	3-3/8	7	3/8	1	12.40	–	–	1155	1213	9
24 x 10	25	635	11-1/2	292	8-3/4	222	0.70	3-1/2	7	3/8	1	12.80	–	–	1206	1266	9
25 x 10	26	660	11-1/2	292	8-3/4	222	0.70	3-5/8	7	3/8	1	13.20	–	–	1256	1318	9
26 x 10	27	685	11-1/2	292	8-3/4	222	0.70	3-7/8	7	3/8	1	13.60	–	–	1306	1371	9
28 x 10	29	737	11-1/2	292	8-3/4	222	0.70	3-5/8	8	3/8	1	14.50	–	–	1400	1470	9
18 x 12	19	481	13-1/2	343	10	254	0.75	3-1/8	6	3/8	1-1/4	14.50	–	–	1222	1283	11
20 x 12	21	533	13-1/2	343	10	254	0.75	3-1/2	6	3/8	1-1/4	15.80	–	–	1365	1433	11
22 x 12	23	584	13-1/2	343	10	254	0.75	4	6	3/8	1-1/4	16.80	–	–	1508	1584	11
24 x 12	25	635	13-1/2	343	10	254	0.75	3-1/2	7	3/8	1-1/4	17.60	–	–	1652	1734	11

Recommended Uses

(Recommended but not restricted to handling these specific products)

Barley

Brown Sugar

Coffee

Corn

Feed

Flour

Grain

Grass Seed

Meat Scap

Nuts

Oats

Pellets

Rice

Salt

Soy Beans

Sugar

Sunflower Seeds

Wheat

Poly

tiger cc industrial elevator bucket by maxilift, orange

Application:

Grains & Food Products Temperature

Range:

-60F to +180F(210F intermittent)

FDA Approved Material:

Yes

Comments:

Economical, high density polyethylene. FDA approved material for handling food grade products.

Nylon

tiger cc industrial elevator bucket by maxilift, tan

Application:

Hot, high impact, abrasive dense products

Range:

-60°F to +300°F (350°F intermittent)

FDA Approved Material:

Comments:

Best for high heat applications, with tough impact and abrasion needs.

Urethane

tiger cc industrial elevator bucket by maxilift, green

Application:

Heavy, abrasion, sticky materials

Range:

-60F to +180F(210F intermittent)

FDA Approved Material:

Yes

Comments:

Most flexible and abrasion resistant. Resists product sticking and sharp cutting particles.

FDA Nylon

tiger cc industrial elevator bucket by maxilift, white

Application:

Hot, high impact, abrasive food grade products

Range:

-60F to +300F

FDA Approved Material:

Yes

Comments:

Best for high heat food grade applications, with tough impact and abrasion needs.

Venting an elevator bucket aids in bucket fill and discharge with light, fluffy materials.

Lightweight, fluffy materials, those that are extremely dense or flow poorly can be difficult to handle in bucket elevators at high speeds. Because these materials tend to trap air when being handled by an elevator bucket, venting provides air relief to assist in their filling and discharge. Commodities for venting include flours, meals, feed mash, DDG’s or screenings. As these materials enter the bucket, air is released through a series of vent holes in the bottom of the bucket allowing for a more complete fill. These vent holes also allow air to re-enter the bucket, which facilitates full release of product into the discharge.

Standard hole diameter is equal to the size of the bolt mounting holes in vent pattern #1, all other vent patterns will have 11/32” diameter holes unless otherwise requested by the customer.

ADDITIONAL SPECIAL DRILLING AND VENTING CHARGES

Drilling any diameter hole over 13/32″
Bolt Hole centers closer than 1-3/4″
Side drilled buckets except standard peanut buckets
Special Venting requirements such as extra holes, change in hole diameter, etc.
Quoted prices subject to change due to special drilling and venting requirements

#1 Vent

Same holes in body as bolt mounting holes.

#2 Vent

One row of holes on 1-1/8″centers

#3 Vent

Two rows of holes on 1-1/8″centers.

#4 Vent

Same as #3, plus three holes in each end cap.

Custom Vent

Vented as required.

Please call for guidance on bucket venting.
